Veterinary Endoscopy
V34 Series
V34 Veterinary Endoscopy Series
Experience the next level of mobility with the V34 Veterinary Endoscopy Series—engineered to perform in every setting, from busy clinics to remote field operations. Designed for both large and small animals, the V34 Series delivers flexibility, durability, and crystal-clear imaging in one seamless system.
Portable Power, Built to Perform
The V34 Series is perfectly suited for veterinary settings such as farms, barns, shelters, and mobile clinics. It provides high-definition imaging with plug-and-play USB connectivity, ideal for quick diagnostics and field-based procedures.
Features
- Full HD CMOS camera for clear, diagnostic-quality imaging
- Six integrated LED lights for optimal visibility

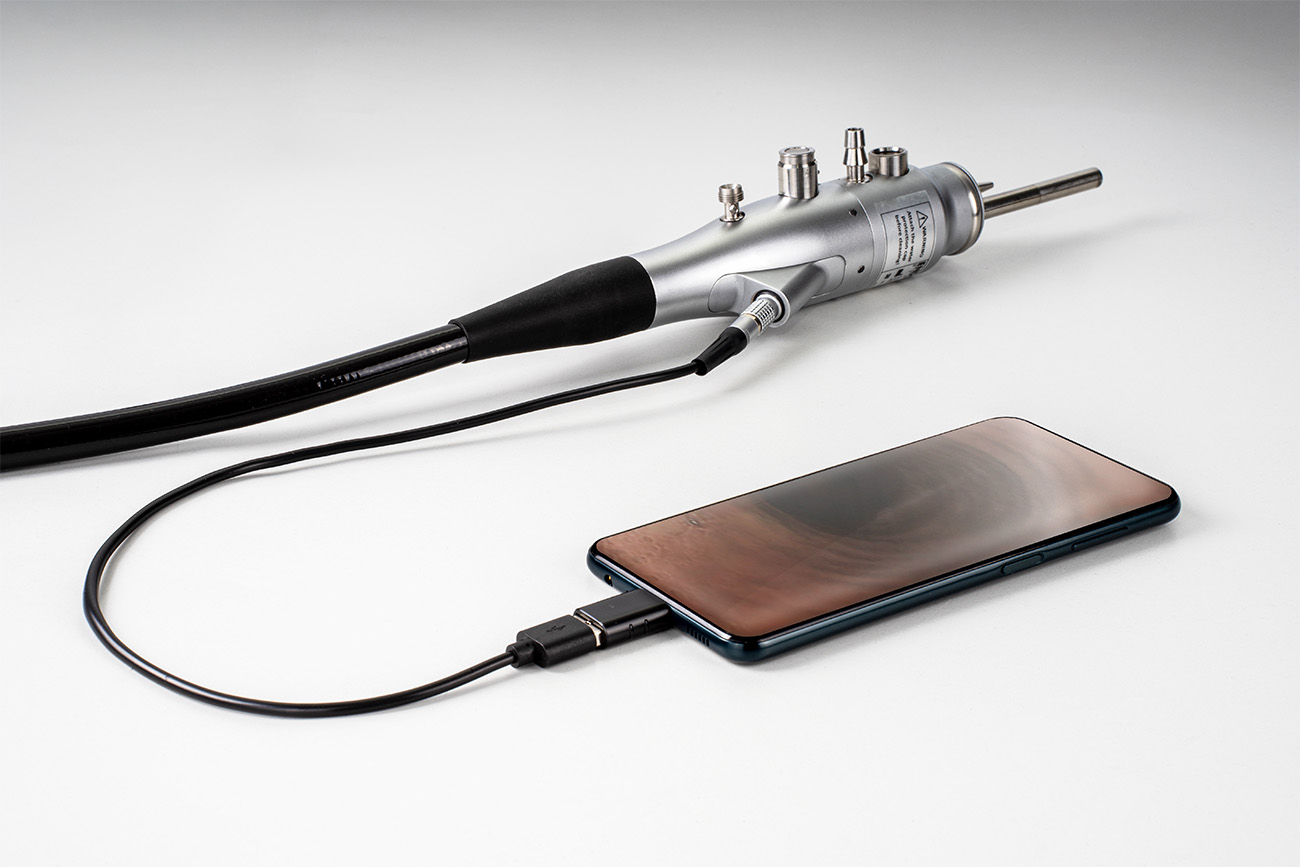

- This device can be easily connected to mobile phones and tablets, and is specifically designed to be compatible with the processor and light sources from EndoMed Systems
- Lightweight and ergonomic, reducing operator fatigue during long procedures
- Reinforced metallic connectors and shock-resistant design for field durability
Our Veterinary Videoendoscope is designed to support veterinarians across a wide range of clinical scenarios:
- GI & Respiratory Tract Endoscopy – for horses, cattle, dogs, cats, and even exotic animals
- Emergency Diagnostics – reliable performance in demanding field environments
- Routine Veterinary Procedures – optimized for use in clinics and mobile units
- Training & Education – suitbale for veterinary schools and teaching hospitals worldwide

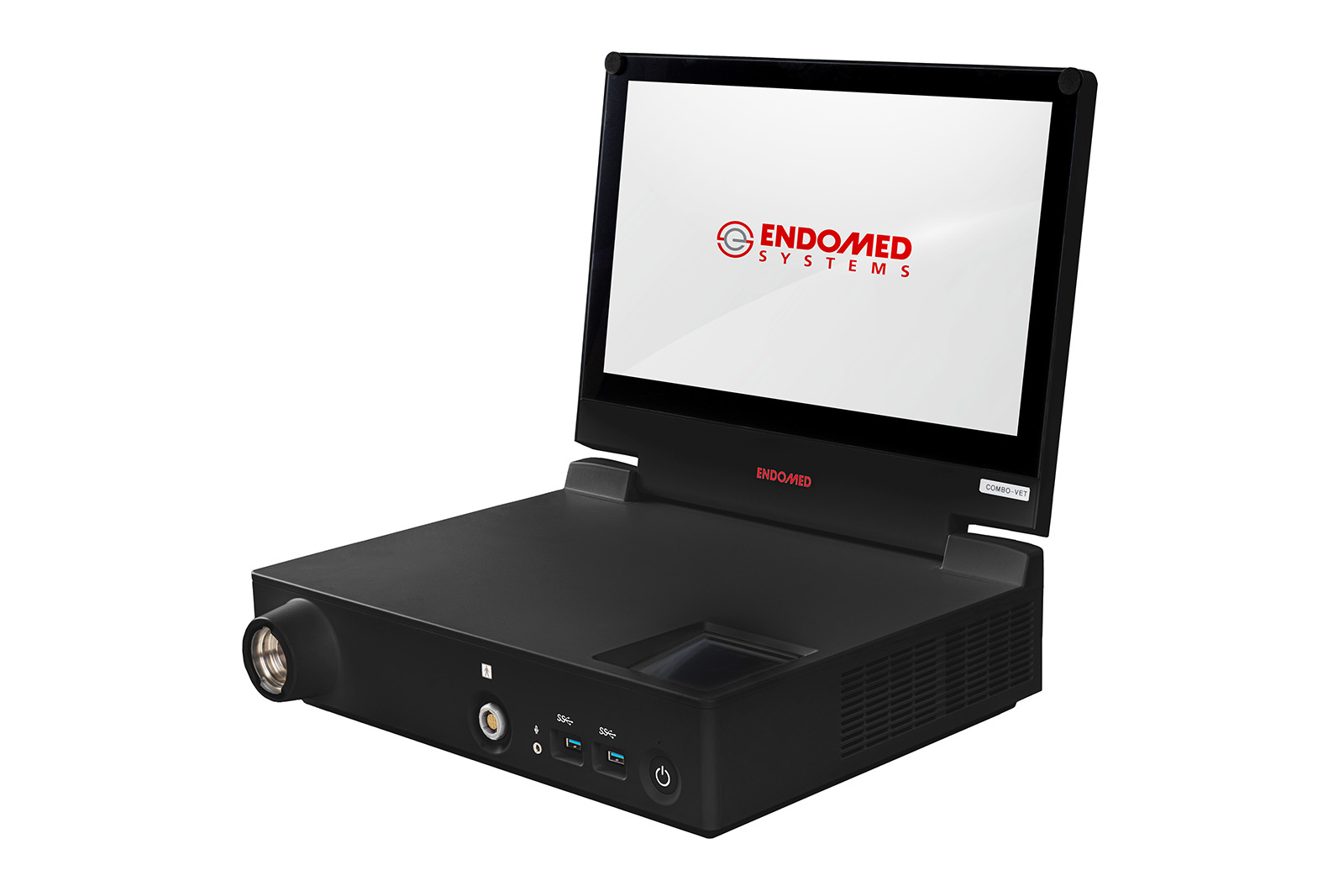

Mobile Imaging Processor
EndoMed Systems offers a field-ready laptop-style all-in-one processor designed for complete mobility:
- Integrated light source and air pump
- 15.6″ Full HD display for crystal-clear visuals
- Built-in photo and video capture software
- Long-lasting modular battery system
- Foldable and lightweight design, ideal for transport
Fully Customizable Scopes – Built Around Your Needs
Why settle for standard when you can have precision? We design and manufacture scopes tailored to your exact requirements—choose your viewing angle, diameter, and features to match your clinical demands.
From concept to creation, we deliver bespoke solutions that put you in control. Let’s build the perfect scope for your practice—contact us today!
Product Images
Technical Specifications
Product Datasheet
Small Veterinary Videoendoscope
| Model | Sheath | Working Channel | Working Lenght | Deflection Up/Down | Deflection Left/Right |
|---|---|---|---|---|---|
| VB-12S | 2.8 mm | 1.2 mm | 610 mm | 200°/120° | 120°/120° |
| VB-15S | 3.8 mm | 1.5 mm | 1000 mm | 180°/120° | 120°/120° |
| VG-20S | 4.8 mm | 2.0 mm | 1000 mm | 180°/120° | 120°/120° |
| VB-28M | 5.8 mm | 2.8 mm | 1500 mm | 180°/120° | 120°/120° |
| VC-28M | 7.9 mm | 2.8 mm | 1400 mm | 180°/100° | 110°/120° |
Large Veterinary Videoendoscope
| Model | Sheath | Working Channel | Working Lenght | Deflection Up/Down | Deflection Left/Right |
|---|---|---|---|---|---|
| VG-28M | 9.7 mm | 2.8 mm | 1400 mm | 180°/100° | 110°/120° |
| VC-28L | 10.4 mm | 2.8 mm | 1800 mm | 180°/100° | 110°/120° |
| VG-28XL | 10.4 mm | 2.8 mm | 3000 mm | 180°/100° | 110°/120° |
| VC-34XL | 12.8 mm | 3.4 mm | 3250 mm | 180°/120° | 160°/160° |
Get in Touch with an Expert
Have questions about the V36-Series or need help choosing the right veterinary endoscopy system for your companion or large animal clinic? Our specialists are ready to support your specific needs.
